Timber to Timber Connections

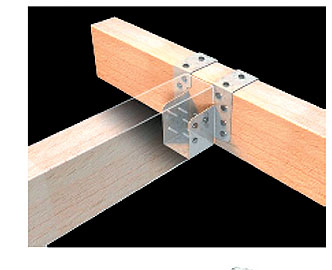

Trimming joists together can be achieved using a range of light to medium joist hangers to provide a quick and safe efficient method.
Mini Hangers provide a compact solution for supporting joists up to a maximum joist depth of 100mm and for timber widths of 38mm-50mm.
Short leg hangers are suitable for medium duty applications and joists up to 175mm and widths of 38-50mm.
Standard leg hangers are suitable for medium duty applications and joists up to 225mm. Widths are available as 38, 44, 47, 50, 63, 75, 89, 100, 125 + 150mm.
Long Leg hangers offer an extended leg version of the standard hanger again suitable for medium duty applications and joists up to 225mm. Long leg hangers can be used in loft conversions suitable for underslung joists (maximum 100mm drop).
Fixing is recommended with 3.75x30mm square twisted nails using all available nail holes where available to achieve full loading on the hangers.
